Robotic Clamp -Compact Gripper-SFG-FMA6-M5086

  • 1
  • 2
  • 3

Brand Name : Robotic Clamp

Model Number : Robotic Clamp -Compact Gripper-SFG-FMA6-M5086

Certification : FDA CE ISO

Place of Origin : Beijing,China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : Depending on the order quantity

Delivery Time : 2-3 work days

Packaging Details : Carton Package

Name : Robotic Clamp -Compact Gripper-SFG-FMA6-M5086

Load : 4500g

Smax : 42mm

Weight : 1356g

Contact Now

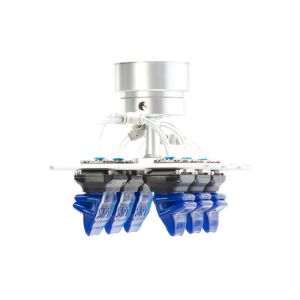

Robotic Clamp - Compact Gripper-SFG-FMA6-M5086

Product Description

Different with rigid structure of traditional jaws, soft flexible gripper has soft pneumatic “finger”, which can cover the target object self-adaptively, and it doesn’t need to be pre-adjusted according to the accurate size and shape of the workpiece, which can get rid of the constraint of the traditional assembly requirements that the object size should be uniform.


Parameter
Model Dimensions(mm) Gripping Capacity
Wb Wn Wm Hb Gn Lb Lt Ln L Smax Ymax

Dn+2Smax

(mm)
SFG-FMA6-M5086 173.4 50 62 168.7 52-100 69 63.5 107 86 55 63.3 52-210

Features / Advantage

Standard working lifespan: ≥3,000,000 times

Load: 4200g

Maximum working pressure: 100 kPa

Air tube diameter: 6 mm

Weight: 1356g

Product Detail

Robotic Clamp -Compact Gripper-SFG-FMA6-M5086


Quality Robotic Clamp -Compact Gripper-SFG-FMA6-M5086 for sale

Robotic Clamp -Compact Gripper-SFG-FMA6-M5086 Images
